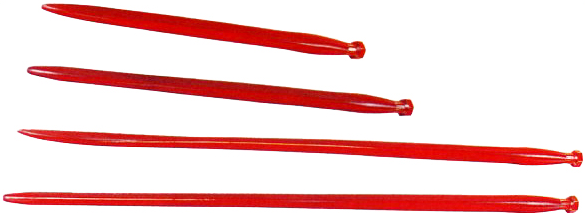

Tines, Conus-2
Leading manufacturer of tines used in Agricultural Material Handling Equipment
| J. J. Udog No. | Overall Length | Fitting (nut) | Weight |
| J. 84007 with point | 820 mm | M28,3 | 6,0 kg |
| J. 84008 with point | 980 mm | M28,3 | 6,7 kg |
| J. 84009 with point | 1100 mm | M28,3 | 7,2 kg |
| J. 84010 with point | 1240 mm | M28,3 | 8,2 kg |
| J. 84011 with point | 1400 mm | M28,3 | 8,5 kg |
Specifications after heat-treatment :
Tensile Strength : 160 kp/mm2
Tightening torque for nut : 465-500 ft lb
