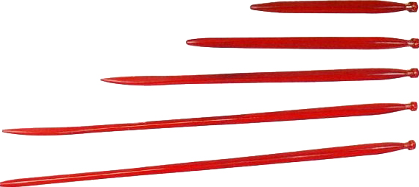

Tines, Conus-1
Leading manufacturer of tines used in Agricultural Material Handling Equipment
| J. J. Udog No. | Overall Length | Fitting (nut) | Weight |
| J. 84001 with point | 600 mm | M20 | 2,6 kg |
| J. 84002 with point | 680 mm | M20 | 3,5 kg |
| J. 84003 with point | 810 mm | M20 | 4,1 kg |
| J. 84004 with point | 1000 mm | M20 | 4,8 kg |
| J. 84005 with point | 1100 mm | M20 | 4,8 kg |
| J. 84006 with point | 1250 mm | M20 | 5,0 kg |
Specifications after heat-treatment :
Tensile Strength : 160 kp/mm2
Tightening torque for nut : 280-315 ft lb
