Special Tines, Conus-1
Leading manufacturer of tines used in Agricultural Material Handling Equipment

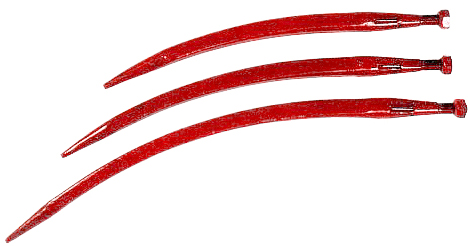

Curved Tines, Conus I with eccentric nut
| J. J. Udog No. | Overall Length | Fitting (nut) | Weight | Bending |
| J. 84012 with point | 600 mm | M20 | 2,6 kg | 32° |
| J. 84013 with point | 680 mm | M20 | 3,5 kg | 38° |
| J. 84014 with point | 810 mm | M20 | 4,1 kg | 48° |
Specifications after heat-treatment :
Tensile Strength : 160 kp/mm2
Tightening torque for nut : 280-315 ft lb
Cranked Tines, Conus I with coned nut
| J. J. Udog No. | Overall Length | Fitting (nut) | Weight |
| J. 84015 with point | 820 mm | M24 | 4,2 kg |
Cranked Tines (sparepart), with eccentric nut
| J. J. Udog No. | Overall Length | Fitting (nut) | Weight |
| J. 84016 with point | 820 mm | M20 | 4,2 kg |
Specifications after heat-treatment :
Tensile Strength : 160 kp/mm2
Tightening torque for nut : 280-315 ft lb
